Brand Name : ZDS
Model Number : 210
Place of Origin : China
MOQ : 1sets
Price : negotiate
Payment Terms : MoneyGram, Western Union, T/T
Supply Ability : 100sets/months
Delivery Time : 5-8 work days
Packaging Details : Carton packing
Name : Automatic Edge Banding Machine With Polishing For Pvc Mdf Board
Edge type : straight lines
Voltage : 220v50hz
Rated power : 4kw
Sheet thickness : 10-50mm
Overall size : 2100*570*1120mm
Weight : 140kg
Packing size : 157*60*69cm
Automatic Edge Banding Machine With Polishing For Pvc Mdf Board
Automatic Edge Banding Machine Features
1. Steel rod guide rail makes automatic operation smoother
2. Cross polishing in result of better banding effect.
3. The profiling glue pot glue the panels evenly.
4. Frame type motor base to ensure no shaking and convenient for edge banding.
5. Trimming motor can move up and down, left and right to realize profile trimming.
6. Secondary pressing of elastic device makes edge banding more tight.
7. Specially adopts flexible scraping and glue line cleaning functions.
Name | Automatic Edge Banding Machine With Polishing For Pvc Mdf Board |
Model | 210 |
Function | automatic plate feeding, double-sided gluing, upper and lower polishing, automatic head and tail trimming |
Edge type | straight lines |
Voltage | 220v50hz |
Rated power | 4kw |
Rated air pressure | 0.4-0.6mpa |
Suction | 1200w |
Belt power | 25w |
Transmission power | 120w |
Heating power | 800w |
Polishing power | 180w*2 |
Trimming power | 800w*2 |
Conveyer belt | 0-14m/min |
Feed plate | 0-14m/min |
Sheet thickness | 10-50mm |
Strip thickness | 0.5-2.5mm |
Glue capacity | 1000ml |
Overall size | 2100*570*1120mm |
Packing size | 157*60*69cm |
Weight | 140kg |
![]() |

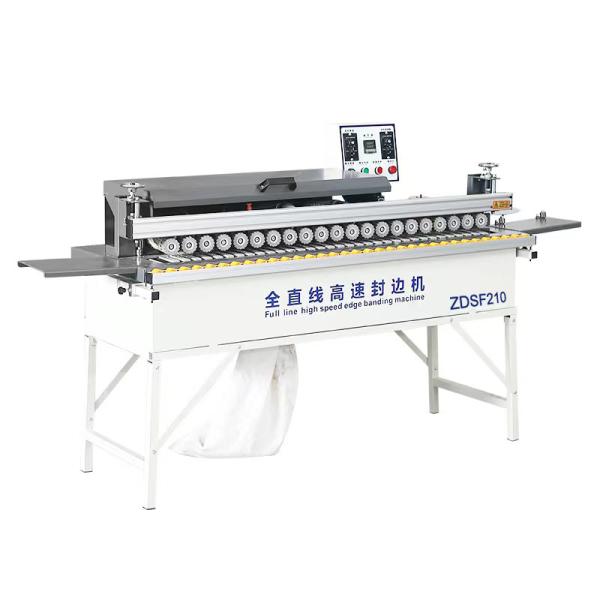

Polishing Automatic Edge Banding Machine For Pvc Mdf Board Images |
